Gantry Crane
Description
Hindustan Hoist & Cranes Industries manufactures and supplies Gantry Cranes for efficient lifting and movement of heavy materials in industrial, construction, fabrication and outdoor applications.
Gantry Cranes are available in Single Girder, Double Girder, Semi-Gantry and customized configurations, depending on capacity, span, lifting height and site requirements.
Key Features
• Heavy-duty structural construction
• Single or double girder design
• Electric Wire Rope Hoist
• Motorized long travel
• Smooth cross travel and lifting
• Heavy-duty end carriages
• Electromagnetic fail-safe brakes
• Upper & lower limit switches
• Pendant / Radio Remote / Cabin control
• VFD option for smooth acceleration and deceleration
• Outdoor and indoor applications
• Customized design and dimensions
• Easy maintenance and long service life
Technical Specifications
Parameter Specification
Crane Type Single / Double Girder Gantry Crane
Capacity As per requirement
Span As required
Lifting Height As required
Hoisting Speed As required
Cross Travel Speed As required
Long Travel Speed As required
Hoist Type Electric Wire Rope Hoist
Control Pendant / Radio Remote / Cabin
Power Supply 415V, 3 Phase, 50 Hz
Duty Class As per application
Girder Fabricated Steel Structure
Legs Heavy-Duty Fabricated Structure
End Carriage Motorized
Wheels Forged / Heavy-Duty Crane Wheels
Brakes Electromagnetic / Fail-Safe
Limit Switches Upper / Lower / Travel
Customization Available
Types of Gantry Cranes
1. Single Girder Gantry Crane
Economical and compact solution for general material-handling applications and moderate lifting capacities.
2. Double Girder Gantry Crane
Designed for heavier loads, larger spans and higher lifting requirements. Suitable for demanding industrial applications.
3. Semi-Gantry Crane
One side of the crane travels on a runway structure while the other side is supported by a gantry leg. Suitable where building structure and floor space require a combination arrangement.
4. Full Gantry Crane

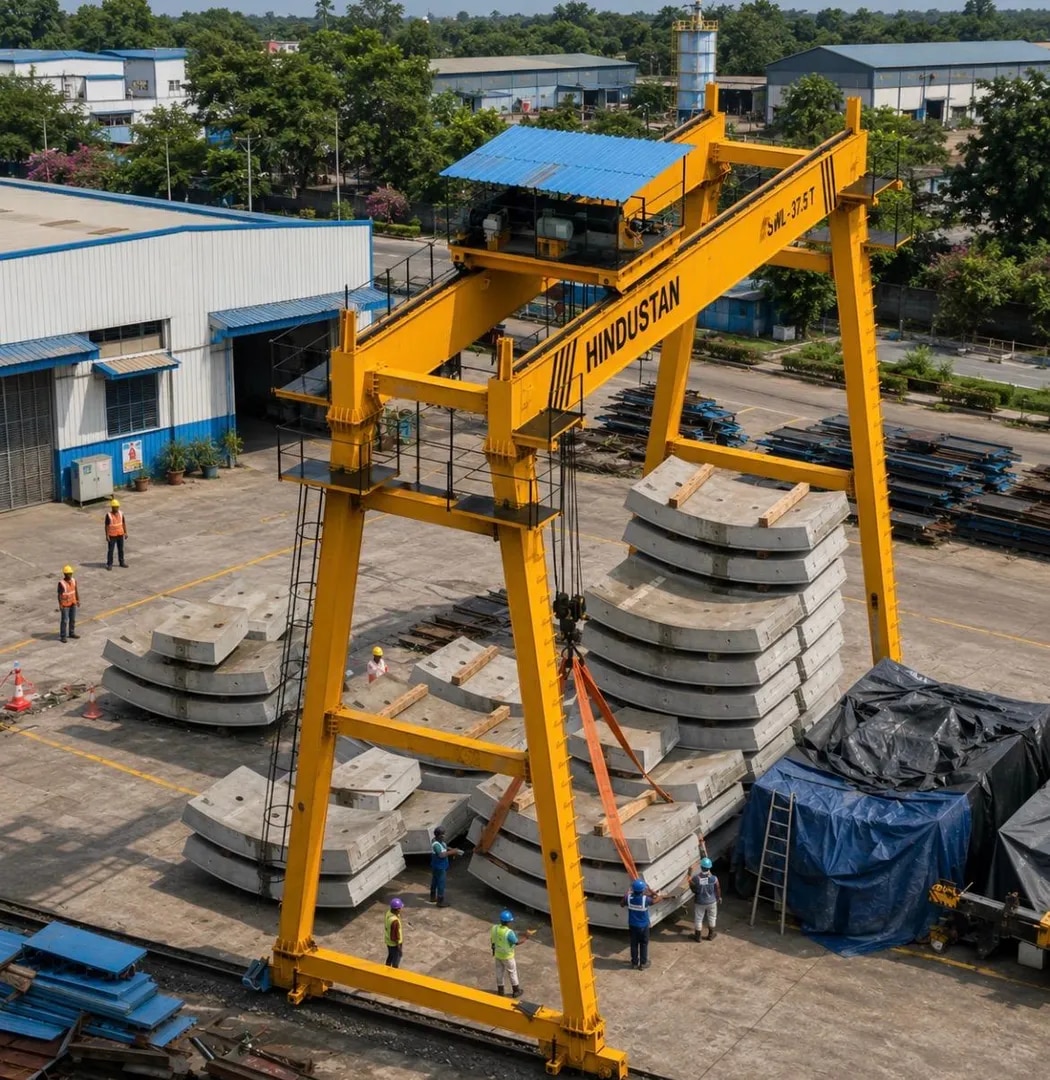

The complete crane bridge is supported by legs and travels on rails installed at floor level. Suitable for outdoor yards and large industrial areas.
Main Components
Bridge Girder
Fabricated steel girder designed according to capacity, span and duty class.
Gantry Legs
Heavy-duty fabricated legs transfer crane loads safely to the supporting runway or rails.
Hoist & Trolley
Electric Wire Rope Hoist provides vertical lifting and horizontal cross travel.
End Carriages
Motorized end carriages provide longitudinal movement of the complete gantry crane.
Crane Wheels
Heavy-duty wheels are selected according to crane wheel loads, rail size and operating conditions.
Electrical Panel
Control panel includes suitable motor starters, protection devices, control circuits and optional VFD systems.
Festoon / Cable System
Suitable power and control cable arrangements can be provided for long-travel and cross-travel operation.
Safety Features
Depending on the application, Gantry Cranes can be equipped with:
• Upper & lower hoist limit switches
• Long-travel limit switches
• Cross-travel limit switches
• Emergency stop
• Overload protection
• Fail-safe brakes
• Motor thermal protection
• Phase failure protection
• Anti-collision system, where required
• Warning alarm / hooter
• Radio remote control
• VFD-based smooth operation
Applications
Gantry Cranes are widely used in:
• Steel Plants
• Fabrication Shops
• Engineering Industries
• Automobile Industries
• Construction Sites
• Infrastructure Projects
• Warehouses
• Railway Projects
• Shipyards
• Power Plants
• Cement Industries
• Foundries
• Precast Industries
• Pipe & Steel Storage Yards
• Heavy Machinery Handling
• Outdoor Material Handling
Indoor & Outdoor Gantry Cranes
Our Gantry Cranes can be designed for both indoor and outdoor applications.
For outdoor installations, the crane design can consider site conditions such as:
• Wind load
• Rain and weather exposure
• Rail arrangement
• Foundation requirements
• Outdoor electrical protection
• Corrosion protection
• Crane parking arrangement
Customized Gantry Crane
Every project has different requirements. We design Gantry Cranes according to:
Capacity + Span + Lift Height + Duty Class + Hoisting Speed + Travel Speed + Site Conditions
We can provide customized solutions for industrial plants, fabrication yards, warehouses and construction projects.
Why Choose Hindustan Hoist & Cranes Industries?
• Since 2006
• Experienced crane engineering and fabrication
• Customized crane solutions
• Heavy-duty construction
• Quality mechanical and electrical components
• Installation & commissioning support
• Load testing and inspection support
• Preventive maintenance
• AMC & after-sales service
Request a Quote
Please share the following details for a technical and commercial proposal:
Capacity | Span | Lifting Height | Hoisting Speed | Long Travel Speed | Cross Travel Speed | Duty Class | Indoor/Outdoor Application | Quantity
