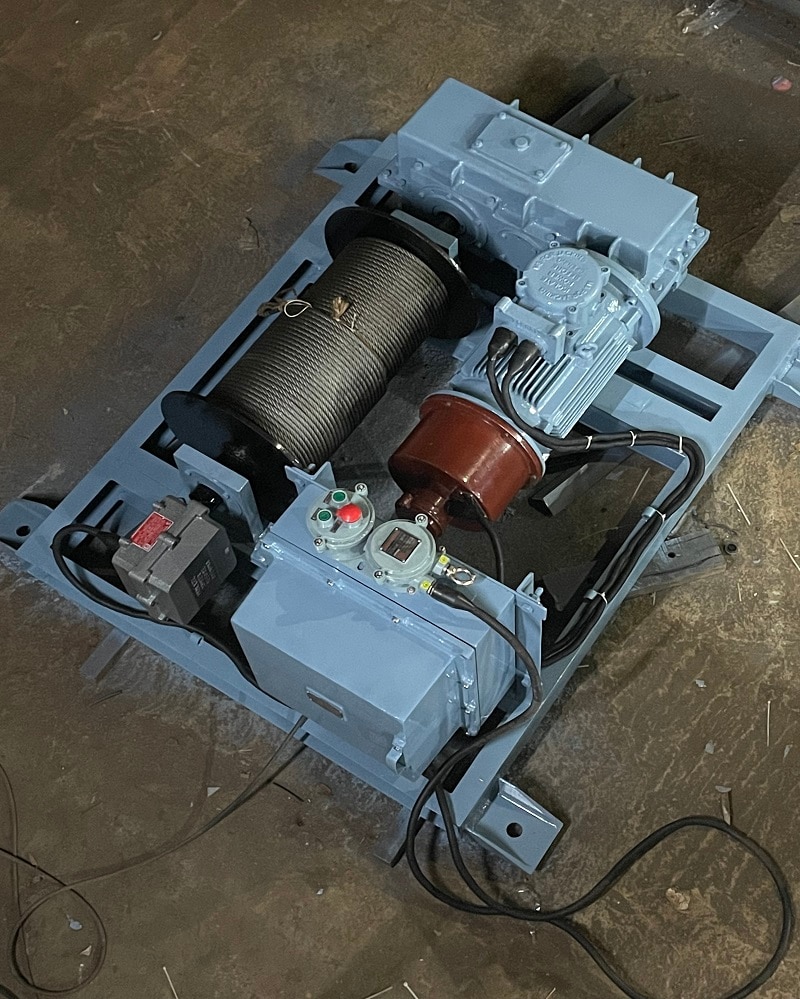

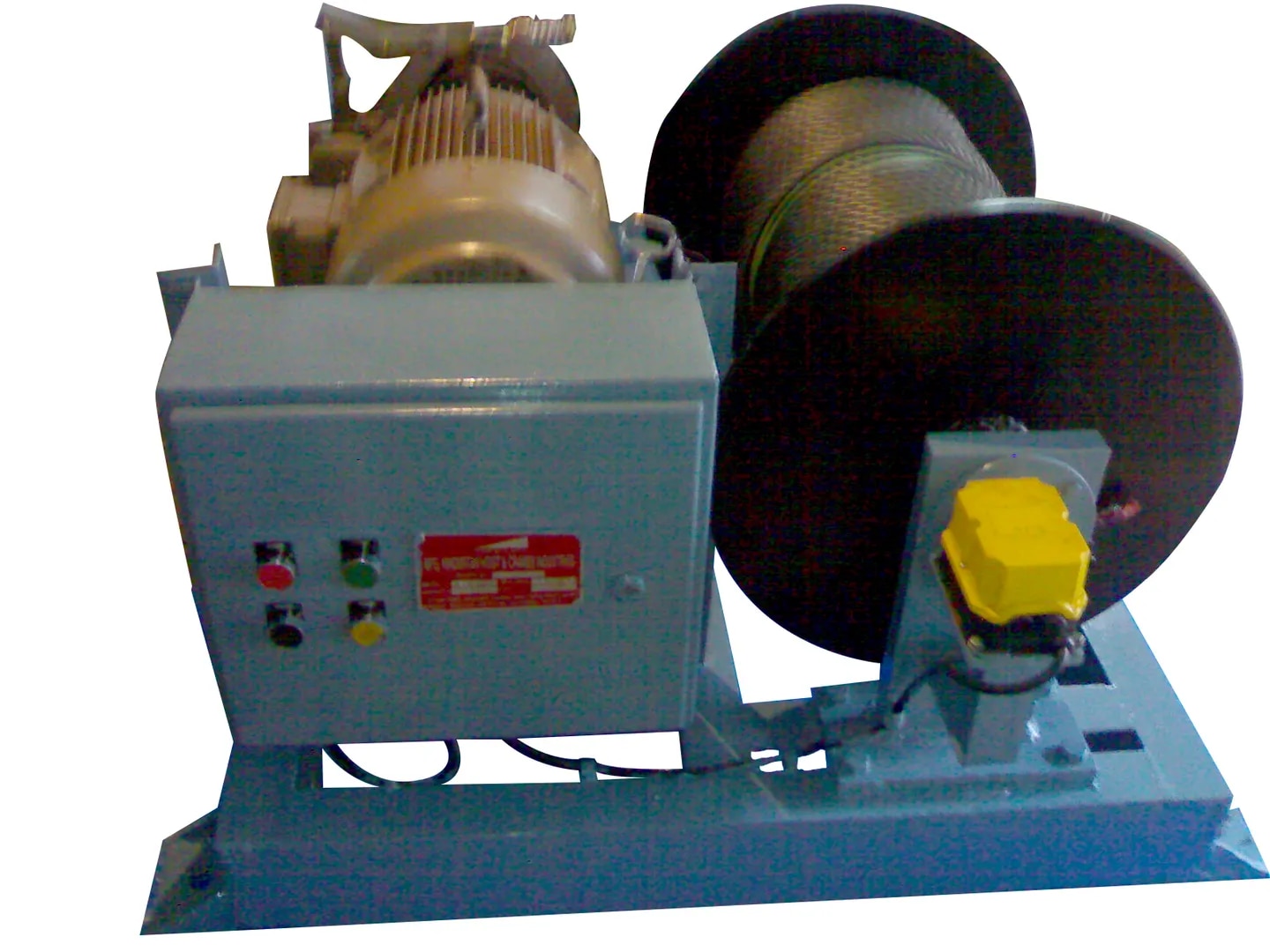

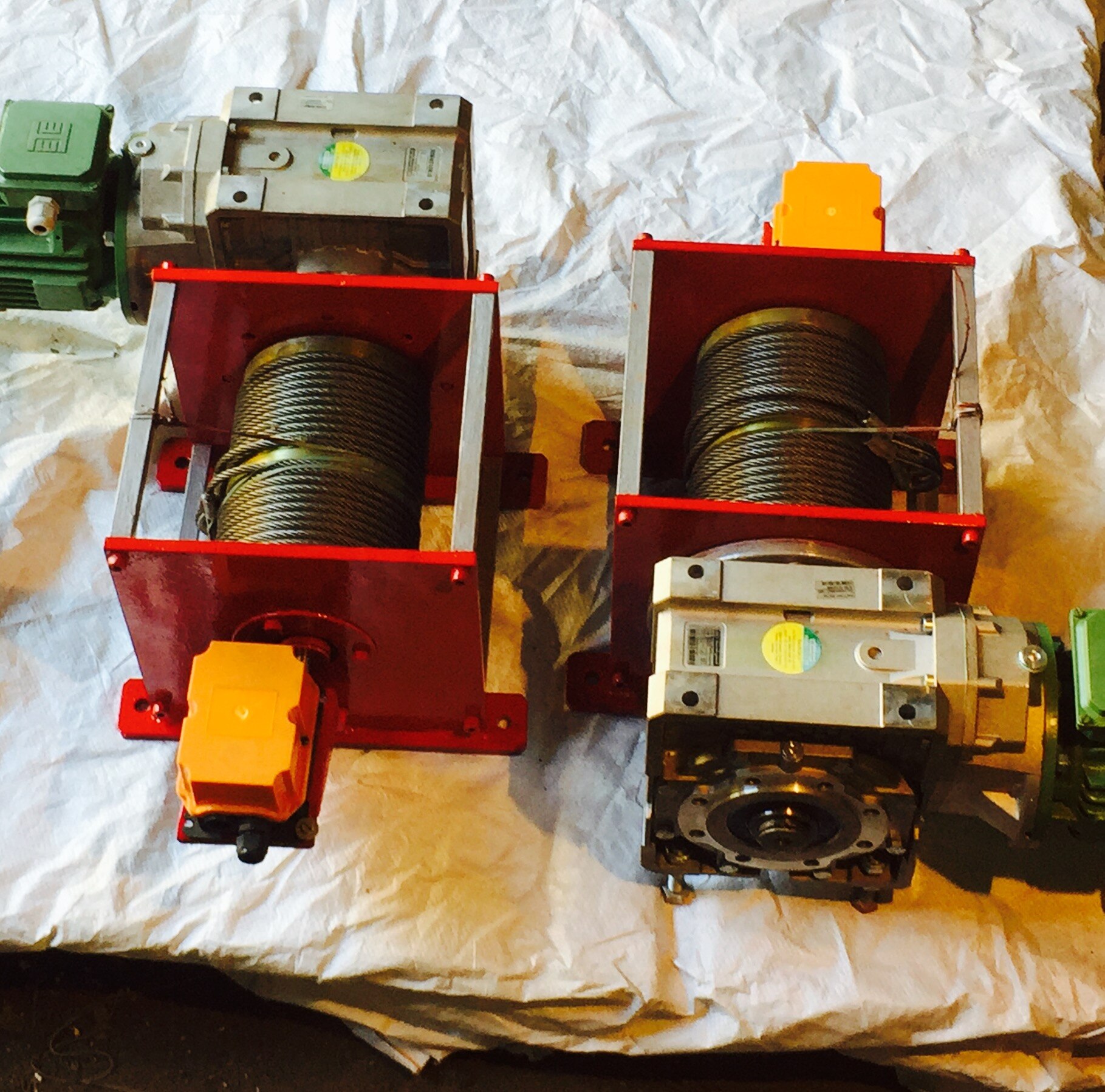

Electric Wire Rope Winch Machine

Heavy-Duty Electric Winch for Lifting, Pulling & Material Handling

Hindustan Hoist & Cranes Industries manufactures and supplies Electric Wire Rope Winch Machines for industrial lifting, pulling, lowering and material-handling applications.

Our Electric Wire Rope Winches are designed for high pulling force, smooth operation, reliable load control and long service life. The machine can be customized according to required capacity, rope length, rope speed, drum dimensions, duty class and application.

What is an Electric Wire Rope Winch?

An Electric Wire Rope Winch is a motor-driven mechanical lifting and pulling machine used to wind and unwind steel wire rope on a rotating drum.

The electric motor supplies power to the gearbox, which generates the required torque to rotate the rope drum. The wire rope can then be used to lift, lower or pull the required load.

Winches can be designed for vertical lifting, horizontal pulling, inclined pulling or specialized material-handling applications.

Key Features

• Heavy-duty fabricated construction

• High-torque electric motor

• Precision-engineered gearbox

• Heavy-duty rope drum

• High-strength steel wire rope

• Electromagnetic fail-safe brake

• Rope guide arrangement

• Upper & lower limit switch options

• Pendant / push-button / control panel operation

• Emergency stop facility

• Overload protection

• Compact and robust design

• Easy maintenance

• Long operational life

• Customized design available

Main Components

1. Electric Motor

The electric motor is selected according to the required load, rope speed, duty class and operating frequency.

The motor provides the required power to drive the gearbox and rope drum.

2. Gearbox

The gearbox reduces motor speed and increases the available torque required for lifting or pulling.

Precision-machined gears and suitable bearings provide reliable power transmission and smooth operation.

3. Rope Drum

The rope drum is manufactured according to the required:

• Wire rope diameter

• Rope length

• Number of rope layers

• Lifting/pulling capacity

• Rope speed

• Drum diameter

Grooved drums can be provided for controlled and uniform wire-rope winding.

4. Wire Rope

High-strength steel wire rope is selected according to the required load and application.

The rope specification depends on:

Capacity + Reeving Arrangement + Rope Speed + Drum Size + Duty

5. Brake

A suitable electromagnetic or fail-safe brake can be provided for controlled stopping and load holding.

The brake selection depends on the load, motor rating and operating requirements.

6. Rope Guide

A rope guide can be provided to help maintain proper wire-rope positioning on the drum and reduce improper winding.

7. Bearings

Heavy-duty bearings support the drum shaft and are selected according to the radial and operating loads.

8. Drum Shaft

The drum shaft is designed to transmit the required torque from the gearbox and support the rope drum safely.

9. Control Panel

The electrical control panel can include:

• Main isolator

• Contactors

• Overload relay

• Control transformer

• Motor protection

• Emergency stop circuit

• Limit switch circuit

• Phase protection

• VFD, where required

10. Limit Switches

Limit switches can be provided where required to control the maximum permissible rope travel or drum operation.

Types of Electric Wire Rope Winches

1. Electric Lifting Winch

Designed primarily for vertical lifting and lowering of loads.

2. Electric Pulling Winch

Used for horizontal or inclined pulling applications.

3. Motorized Rope Winch

Motor and gearbox arrangement provides powered rope winding and unwinding.

4. Heavy-Duty Industrial Winch

Designed for demanding industrial applications requiring frequent operation and higher duty.

5. Customized Winch

Special designs can be developed according to customer requirements, available space and application conditions.

Technical Specifications

Parameter Specification

Product Electric Wire Rope Winch

Application Lifting / Pulling / Lowering

Capacity As per requirement

Pulling Capacity As per requirement

Rope Speed As required

Rope Length As required

Wire Rope Diameter As per design

Drum Diameter As per design

Drum Length As per design

Motor Electric Motor

Motor Rating As per requirement

Gearbox Heavy-Duty Reduction Gearbox

Brake Electromagnetic / Fail-Safe

Control Pendant / Push Button / Panel / VFD

Power Supply 415V, 3 Phase, 50 Hz or as required

Mounting Floor / Structure / Customized

Rope Guide Available

Limit Switch Available

Emergency Stop Available

Overload Protection Available

Duty Class As per application

Customization Available

Final specifications are selected according to the application, loading condition, operating cycle, rope arrangement and site requirements.

Design Considerations

For proper winch selection, the following information is required:

Load Capacity

Required lifting or pulling load.

Rope Speed

Required wire-rope speed in metres per minute.

Rope Length

Total required wire-rope length.

Lifting Height

Required vertical lifting height, where applicable.

Pulling Distance

Required pulling distance for horizontal or inclined applications.

Duty

Frequency of operation and expected working cycle.

Mounting

Available space and mounting arrangement.

Power Supply

Available electrical supply and control voltage.

Safety Features

Depending on the application, the winch can be equipped with:

• Fail-safe brake

• Emergency stop

• Motor overload protection

• Upper/lower limit protection

• Phase failure protection

• Thermal motor protection

• Proper rope guide

• Safety hook and latch where applicable

• Drum guarding where required

• Electrical interlocking

• VFD-based acceleration/deceleration

Safety devices and configuration should be selected according to the actual application and applicable statutory requirements.

Applications

Electric Wire Rope Winch Machines are suitable for a wide range of industries and applications:

• Engineering Industries

• Steel Plants

• Fabrication Industries

• Automobile Industries

• Manufacturing Plants

• Warehouses

• Construction Projects

• Infrastructure Projects

• Power Plants

• Cement Industries

• Foundries

• Machine Shops

• Material Handling

• Machinery Installation

• Loading & Unloading

• Equipment Pulling

• Structure Handling

• Industrial Gate Operation

• General Lifting & Pulling

Advantages

High Pulling Capacity

Suitable for applications requiring substantial lifting or pulling force.

Smooth Operation

Motor and gearbox arrangement provides controlled rope movement.

Robust Construction

Heavy-duty components provide reliability in industrial environments.

Customized Design

Capacity, speed, drum size, rope length and mounting arrangement can be designed according to the application.

Easy Maintenance

Accessible mechanical and electrical components simplify inspection and servicing.

Long Service Life

Properly selected components and regular preventive maintenance help ensure reliable operation.

Installation

The winch must be installed on a properly designed and adequately strong supporting structure.

Before commissioning, the following should be checked:

• Foundation / supporting structure

• Alignment

• Drum rotation

• Wire-rope installation

• Brake operation

• Limit switches

• Electrical connections

• Emergency stop

• Load-test requirements

• Guarding and safety arrangements

Installation should be carried out by competent personnel according to the approved design and applicable safety requirements.

Maintenance

Regular maintenance helps ensure safe and reliable operation.

Recommended maintenance includes:

• Inspect wire rope regularly

• Check rope winding on the drum

• Check brake condition

• Inspect gearbox oil

• Check motor bearings

• Check electrical connections

• Inspect limit switches

• Check drum and shaft

• Check mounting bolts

• Inspect hooks and accessories where applicable

• Lubricate components as recommended

• Carry out periodic load testing as required

Custom Engineering

Hindustan Hoist & Cranes Industries can develop customized Electric Wire Rope Winch Machines based on specific application requirements.

We can assist with selection of:

Motor → Gearbox → Drum → Wire Rope → Brake → Control Panel → Mounting Arrangement

The complete system can be designed according to required capacity, rope speed, rope length, lifting height, pulling force and duty class.

Why Choose Hindustan Hoist & Cranes Industries?

• Since 2006

• Experienced in lifting and material-handling equipment

• Customized engineering solutions

• Heavy-duty fabrication

• Quality mechanical and electrical components

• Technical support

• Installation & commissioning support

• Preventive maintenance

• AMC & after-sales service

Request a Technical & Commercial Offer

Please provide the following details:

1. Capacity / Pulling Load

2. Lifting Height / Pulling Distance

3. Rope Speed

4. Wire Rope Length

5. Application

6. Duty / Working Frequency

7. Mounting Arrangement

8. Power Supply

9. Required Quantity

Our technical team can recommend a suitable Electric Wire Rope Winch Machine based on your application.
