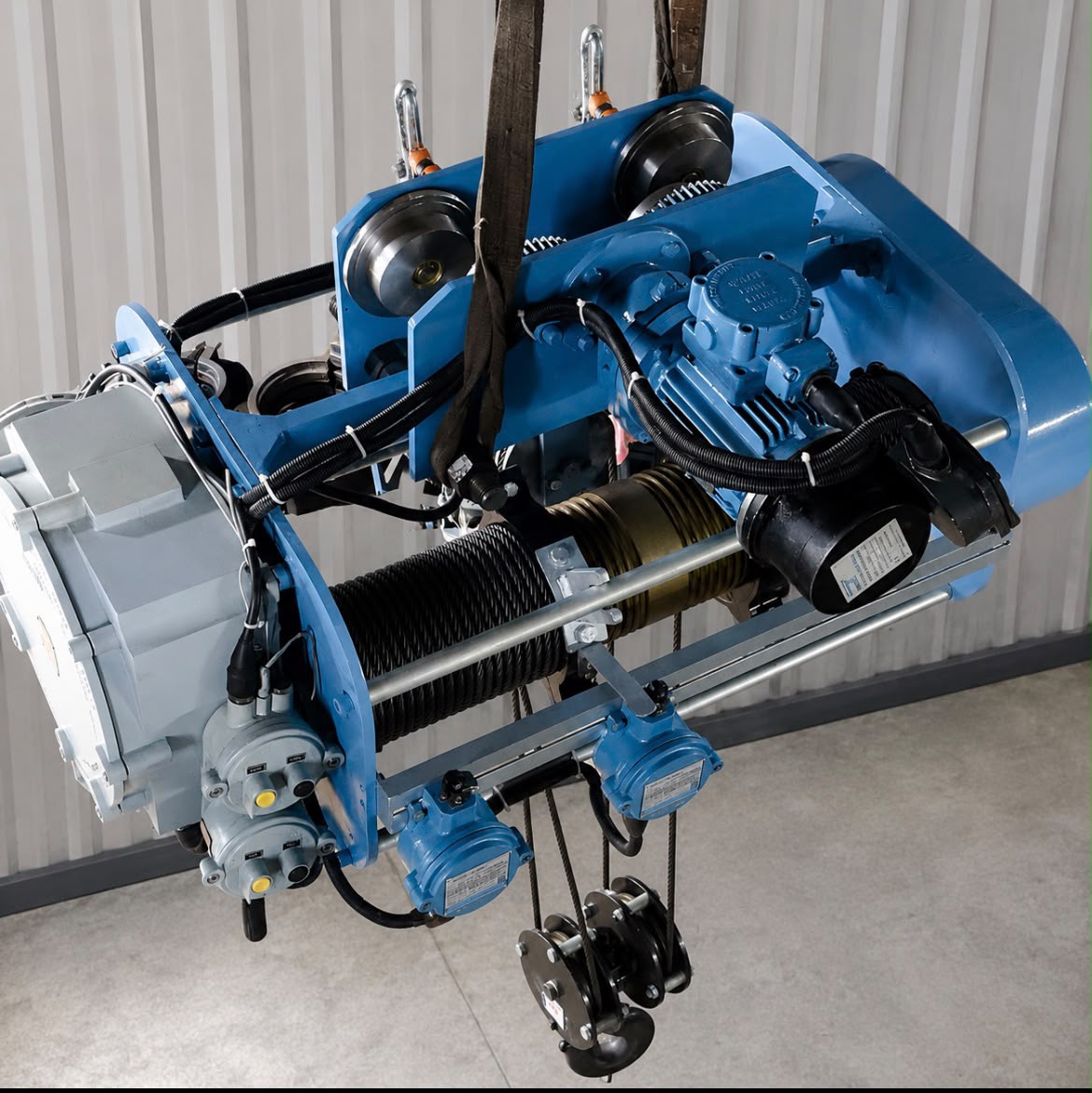

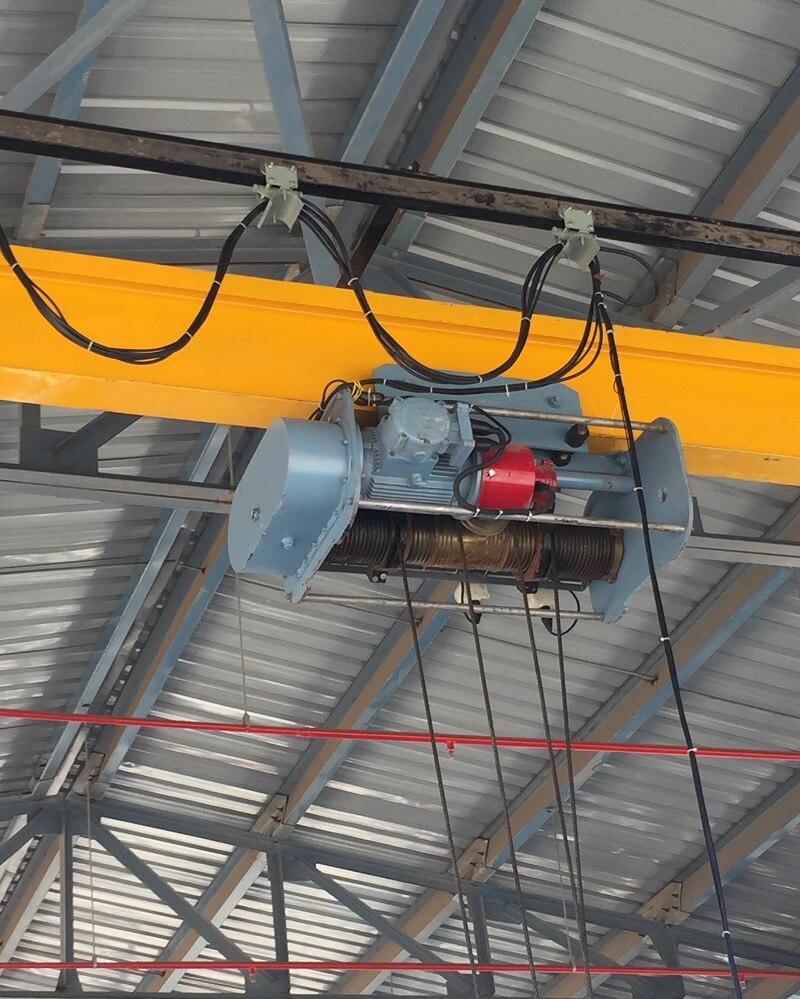

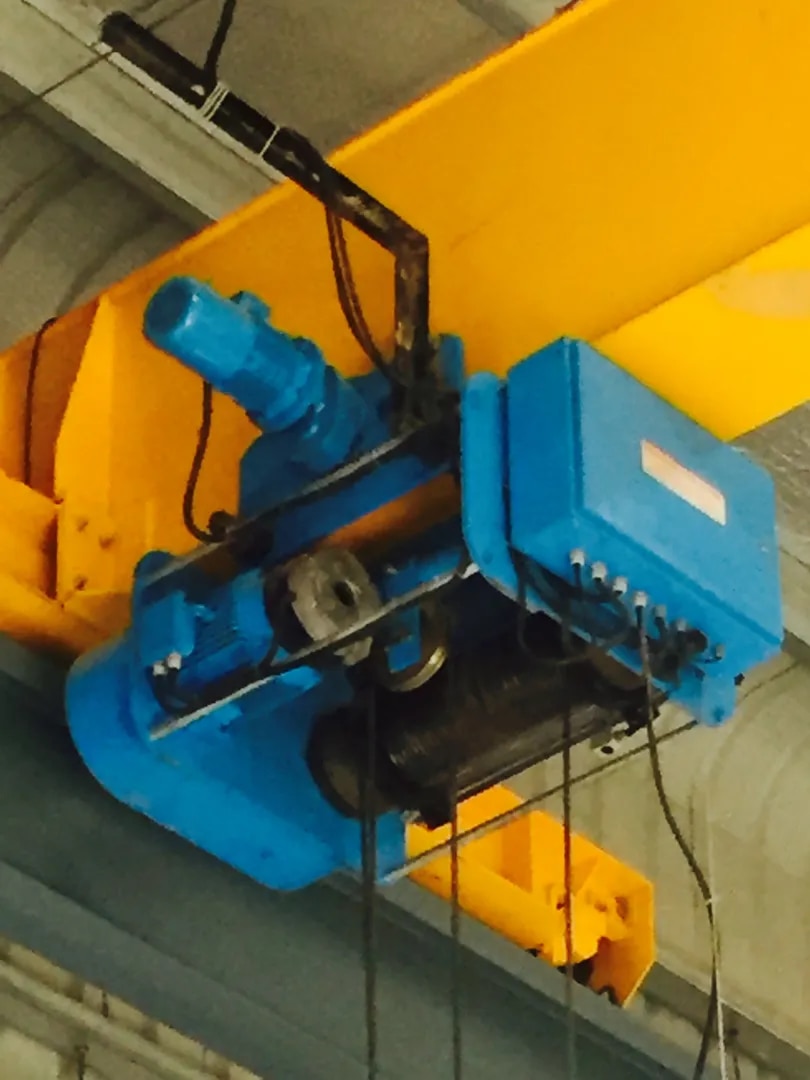

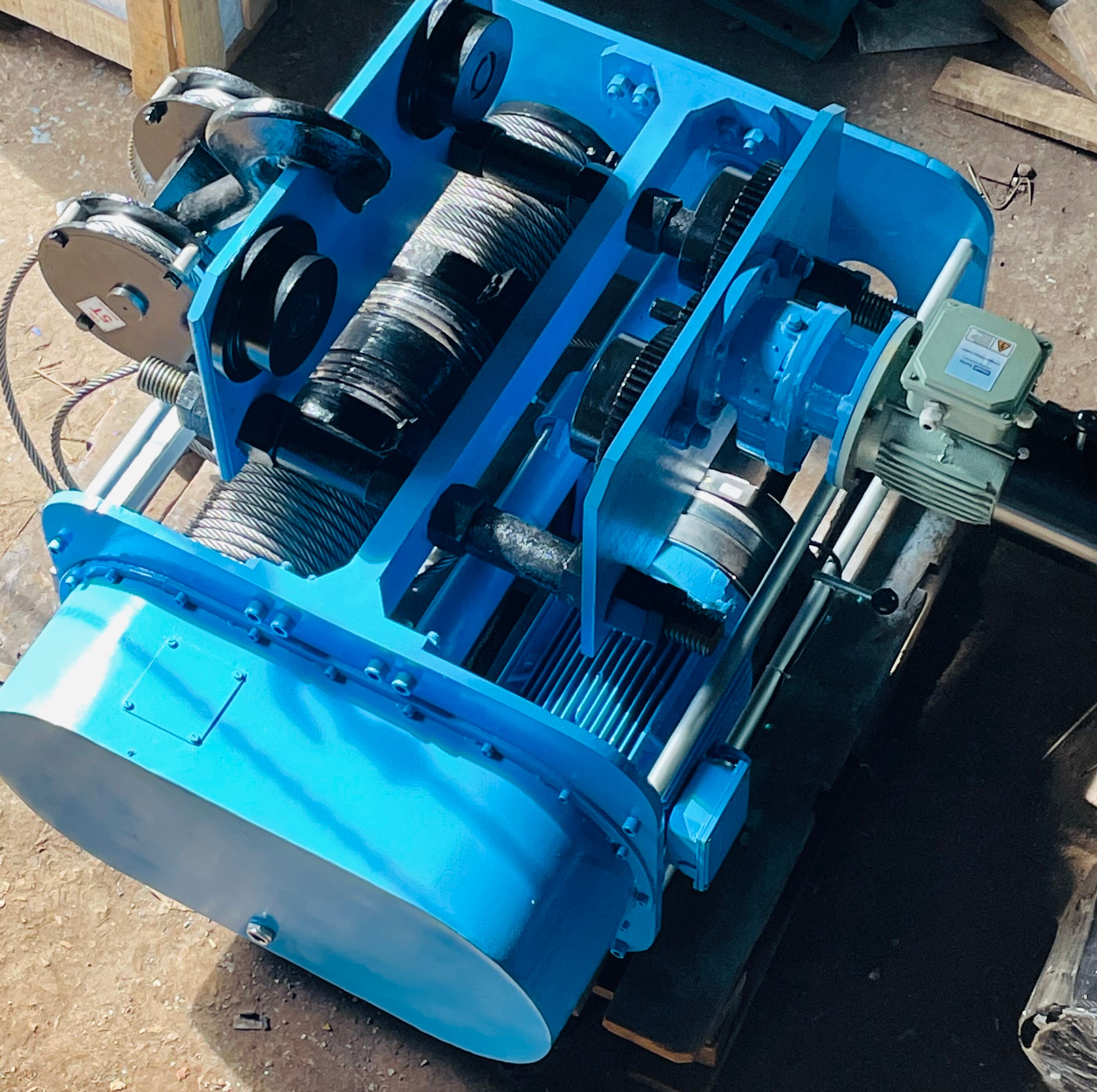

Electric Wire Rope Hoist

Hindustan Hoist & Cranes Industries manufactures and supplies robust Electric Wire Rope Hoists designed for safe, smooth and efficient lifting of heavy loads in industrial and material-handling applications.

Our Electric Wire Rope Hoists are engineered for dependable performance, easy maintenance and long service life. They can be supplied in fixed, push-pull, geared trolley and motorized trolley configurations, depending on the application and crane arrangement.

With customized lifting capacity, lifting height, hoisting speed, rope falls and trolley arrangements, our hoists can be designed to suit individual customer requirements.

Why Choose Hindustan Electric Wire Rope Hoist?

• Heavy-duty and robust construction

• Compact and modular design

• Smooth and reliable lifting operation

• High-quality crane-duty motor

• Precision-engineered gearbox

• Grooved rope drum for proper rope winding

• High-strength wire rope

• Forged steel hook with safety latch

• Electromagnetic fail-safe brake

• Upper and lower limit protection

• Low-voltage pendant control

• Adjustable trolley arrangement

• Easy maintenance and servicing

• Customized solutions for different industrial applications

Main Components

1. Hoisting Motor

High-torque crane-duty motor designed for frequent starting and stopping operations. Motors can be selected according to required capacity, lifting speed and duty class.

2. Gearbox

Precision-engineered gear reduction system provides smooth transmission of power and reliable lifting performance. Hardened gears and quality bearings ensure long operational life.

3. Rope Drum

The rope drum is manufactured with accurately machined grooves to ensure proper seating and winding of the wire rope, minimizing rope wear and improving operating reliability.

4. Wire Rope

High-quality steel wire rope is selected according to the hoist capacity, reeving arrangement and applicable design requirements.

5. Rope Guide

A specially designed rope guide helps maintain proper rope alignment on the drum and reduces the possibility of rope overlapping or loosening.

6. Hook Block

Forged steel hook assembly with safety latch and suitable sheaves is provided for secure and reliable load handling.

7. Hoist Brake

Fail-safe electromagnetic brake provides reliable stopping and holding of the suspended load during operation and power failure conditions.

8. Limit Switch

Upper and lower limit protection helps prevent excessive hook travel and provides an important safety function during lifting and lowering operations.

9. Trolley

Hoists can be supplied with push-pull, hand-geared or motorized trolley arrangements to suit the supporting beam or crane girder.

10. Control Panel

Electrical control panels are designed for reliable operation and can include contactors, overload protection, control transformer and other required electrical protection devices.

Technical Specifications

Parameter Specification

Product Electric Wire Rope Hoist

Capacity As per customer requirement

Lifting Height As per customer requirement

Hoisting Speed Single / Dual Speed / VFD

Rope Falls 2 / 4 / As required

Trolley Fixed / Push-Pull / Geared / Motorized

Power Supply 415 V, 3 Phase, 50 Hz or as required

Control Voltage Low-voltage control

Wire Rope High-strength steel wire rope

Hook Forged steel safety hook

Brake Electromagnetic / Fail-safe brake

Limit Switch Upper & Lower Limit

Protection As per application requirement

Duty Class Selected according to operating conditions

Mounting Fixed / Monorail / EOT Crane

Customization Available

Final technical specifications are selected according to capacity, lifting height, duty class, operating frequency and site requirements.

Available Configurations

Fixed Type Wire Rope Hoist

Suitable for applications where the hoist is permanently mounted at a fixed location.

Push-Pull Trolley Hoist

Suitable for applications where manual horizontal movement of the hoist is required.

Geared Trolley Hoist

Suitable for controlled manual travelling along an I-beam.

Motorized Trolley Hoist

Provides powered cross travel and is suitable for EOT cranes, monorail systems and industrial lifting applications.

Low Headroom Hoist

Specially designed for applications where available building height is limited.

VFD Hoist

Variable Frequency Drive can be provided for smooth starting, stopping and precise load positioning.

Safety Features

Safety is a key consideration in our Electric Wire Rope Hoist design.

Depending on the model and application, the hoist can be equipped with:

• Upper and lower limit switches

• Fail-safe electromagnetic brake

• Overload protection

• Emergency stop

• Safety hook latch

• Low-voltage control

• Thermal motor protection

• Cross-travel limit switch

• VFD-based smooth acceleration/deceleration

• Rope guide and properly grooved rope drum

Applications

Hindustan Electric Wire Rope Hoists are suitable for a wide range of industries:

• Engineering Industries

• Automobile Industries

• Fabrication Shops

• Steel Industries

• Foundries

• Cement Industries

• Power Plants

• Chemical Industries

• Pharmaceutical Industries

• Warehouses

• Manufacturing Plants

• Infrastructure Projects

• Machine Shops

• Material Handling Applications

• EOT & HOT Cranes

• Monorail Lifting Systems

Designed for Your Requirement

Every lifting application is different. Our technical team can select and customize the hoist according to:

Capacity + Lift Height + Hoisting Speed + Duty Class + Rope Falls + Beam Size + Trolley Type + Operating Environment

This helps provide an efficient and economical lifting solution for your application.

Quality & Engineering

Our hoists are manufactured using carefully selected components and engineering practices. The design can be developed in accordance with applicable Indian and international standards and customer specifications. Common industry references include IS 3938 for electric wire rope hoists, IS 2266 for steel wire ropes and IS 3815 for hooks.

Applications & Custom Solutions

Whether you require a compact hoist for a fabrication workshop or a heavy-duty hoisting system for an EOT crane, Hindustan Hoist & Cranes Industries can provide a solution according to your lifting requirements.

Capacity, lifting height, speed, duty class and configuration can be customized as required.
